Powrtouch Auto Engagement Quick Start Guide

Quick Start Guide for Powrtouch Auto Engagement Models.

Ensure you are disconnected from the mains supply.









Unplug the mains cable completely.

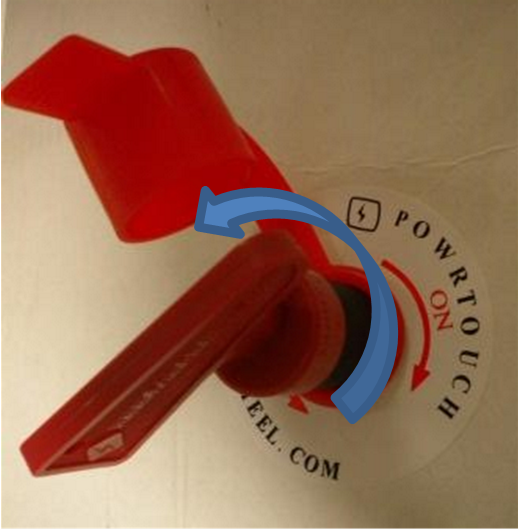

Step 1: Switch on the Isolator Switch.











Turn the isolation key clockwise.

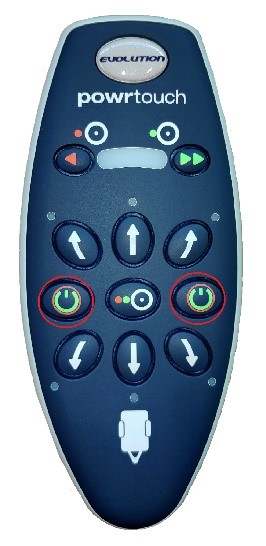

Step 2: Turn on the handset.













Press both green buttons and immediately release.

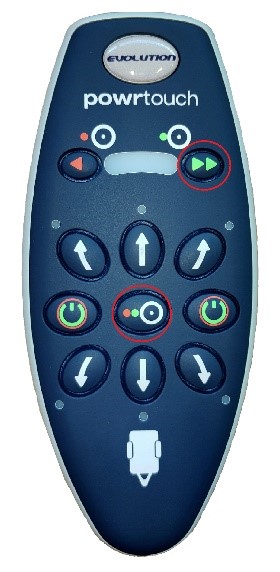

Step 3: Engage the rollers.











Press and hold the middle orange button then press the top right arrows indicated and release both.

The green LED will scroll from left to right.

Wait for single green light to illuminate before moving caravan.

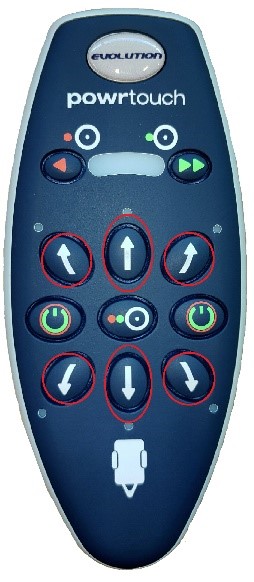

Step 4: Manoeuvre your caravan.













Use the direction arrow buttons on the handset to move in the direction indicated.

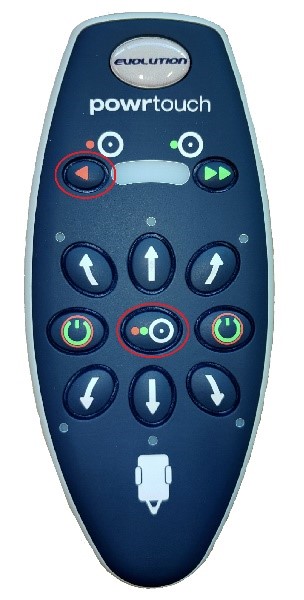

Step 5: Disengage the rollers.











Press and hold the middle orange button then press the top left arrows indicated and release both.

The green LED’s will scroll from right to left.

All four green LED’s will flash when the unit is parking.

Do not turn off the isolator switch until you have a solid green light.













Step 6: Turn off the isolator switch.















Turn the isolation key anti-clockwise and remove.
