Fitting Freedom Side Covers

A guide to fitting and removing Freedom side covers.

Fitting the Cover

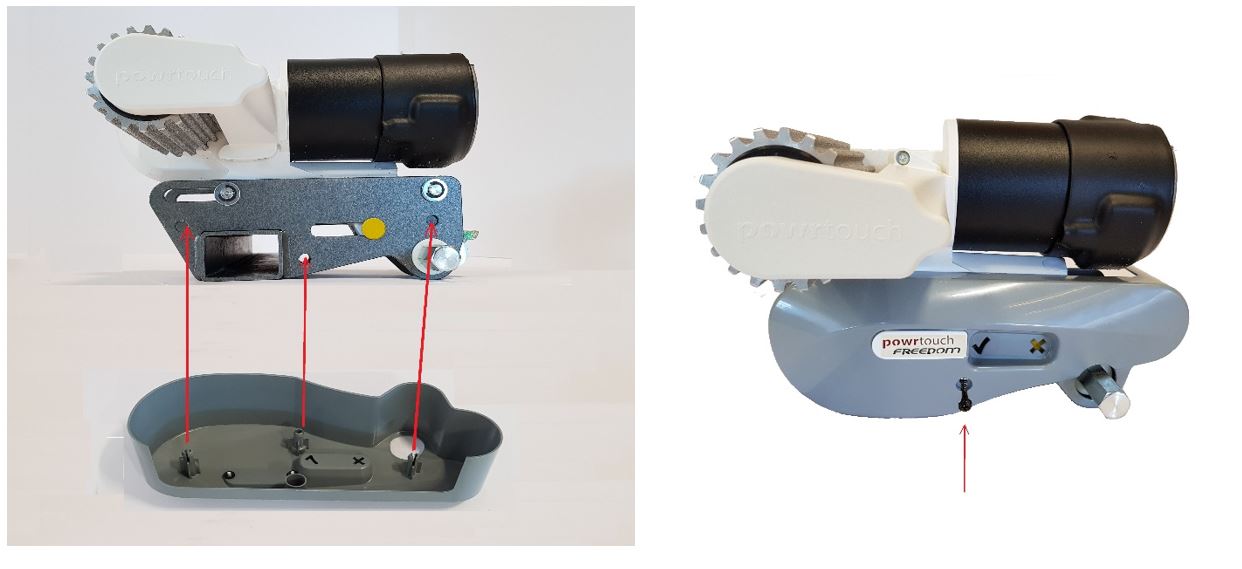

To fit the side-cover insert the three lugs on the side-cover into the three holes on the metalwork as shown in the picture below. Push the side-cover until the lugs click in place. Secure the side-cover with the retaining screw. Insert the retaining screw into the screw hole as shown in the picture below. Do not over-tighten the screw.

Removing the Cover

To remove the side-cover unscrew the retaining screw until free and pull the cover directly toward you.
