Fitting Evolution side covers (New Style)

A guide to fitting and removing Evolution side covers.

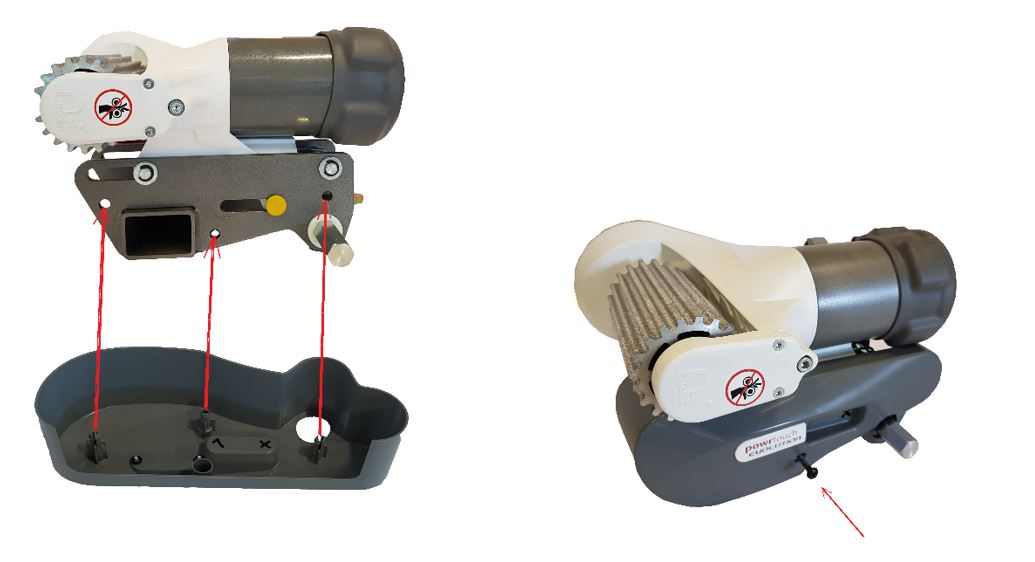

Fitting the Manual Engagement Cover

To fit the side-cover insert the three lugs on the side-cover into the three holes on the metalwork as shown in the picture below. Push the side-cover until the lugs click in place. Secure the side-cover with the retaining screw. Insert the retaining screw into the screw hole as shown in the picture below. Do not over-tighten the screw.

Removing the Manual Engagement Cover

To remove the side-cover unscrew the retaining screw until free and pull the cover directly toward you.

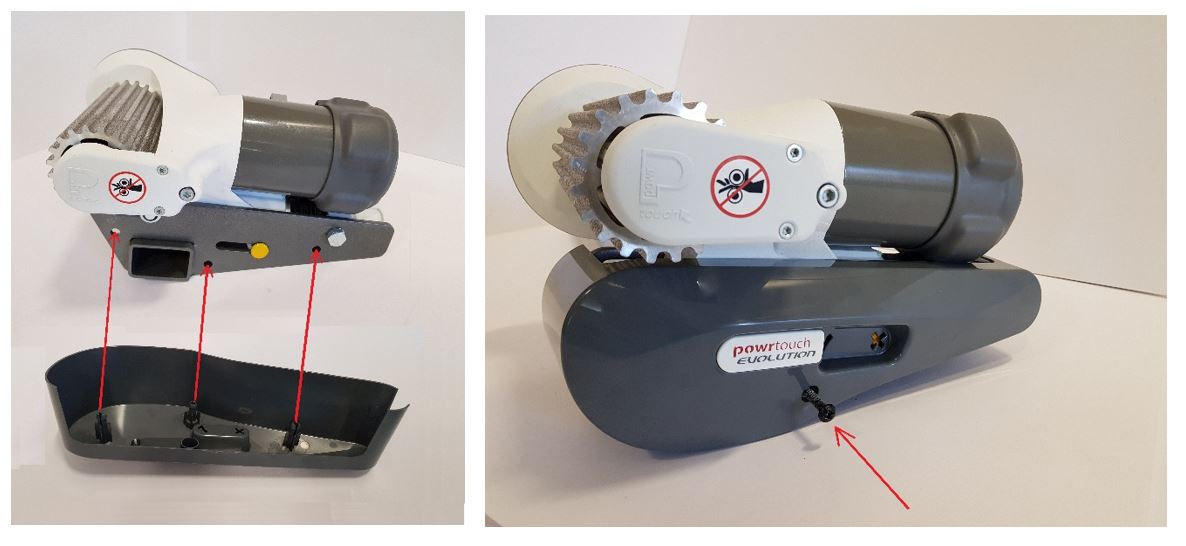

Fitting the Automatic Engagement Cover

To fit the side-cover insert the three lugs on the side-cover into the three holes on the metalwork as shown in the picture below. Push the side-cover until the lugs click in place. Secure the side-cover with the retaining screw. Insert the retaining screw into the screw hole as shown in the picture below. Do not over-tighten the screw.

Removing the Automatic Engagement Cover

To remove the side-cover unscrew the retaining screw until free and pull the cover directly toward you.
